Nintendo 3DS Cameras Replacement

Introduction

Can't take any pictures with your 3DS? Replace either the front or rear-facing cameras. All three cameras are located on the same ribbon cable.


Step 1 Back Cover



The screws are held in place by locking washers, and will not come out of the back cover.

Unscrew the four Phillips #00 screws along the top of the back cover.

The screws are held in place by locking washers, and will not come out of the back cover.

The comments section is full of unlucky souls who will tell you that the screws here through step 4 will strip incredibly easily. Press down fairly hard, and go slow.



Step 2



Grab the top edge of the back cover with your opposite hand so that the cover does not fall back into place.

Hold the device in one hand and turn it over.

Grab the top edge of the back cover with your opposite hand so that the cover does not fall back into place.

Flip the 3DS over again so that the back cover is facing up.

Pull the back cover up and away from the rest of the device to remove it.



Step 3 Battery



Pry the battery up with the plastic opening tool.

Insert a plastic opening tool into the notch in the lower case above the battery.

Pry the battery up with the plastic opening tool.

Grab the top edge of the battery and lift it out of the lower case.



Step 4 Lower Case



Remove the 2.4 mm silver Phillips screw above the game cartridge slot.

Remove the nine 6.3 mm black Phillips screws from the lower case.

Remove the 2.4 mm silver Phillips screw above the game cartridge slot.



Step 5



There are still two ribbon cables connecting the mother board to the case, so be sure not to pull the lower case all the way off.

Lift the bottom edge of the lower case off the rest of the 3DS.

There are still two ribbon cables connecting the mother board to the case, so be sure not to pull the lower case all the way off.

Use a plastic opening tool to pry the shoulder button ribbon cables off their sockets on the motherboard.

Remove the lower case from the device.



Step 6 Circle Pad Joystick

Remove the two 7.7 mm Phillips screws securing the back of the Circle Pad to the motherboard.



Step 7



Lift the Circle Pad joystick off the motherboard and lay it on its back so that the ribbon cable connector is accessible.

Use the flat end of a spudger to pry the back of the Circle Pad off the motherboard.

Lift the Circle Pad joystick off the motherboard and lay it on its back so that the ribbon cable connector is accessible.



Step 8



Be sure you are prying up on the hinged retaining flap, '''not''' the socket itself.

Use the flat end of a spudger or your fingernail to flip up the retaining flap on the Circle Pad ribbon cable ZIF socket.

Be sure you are prying up on the hinged retaining flap, not the socket itself.

Lift the Circle Pad joystick off the motherboard.



Step 9



Use a spudger or screwdriver to lift the pads up and remove them from the device.

To decrease the chance of losing it during repairs, you may want to remove the two thin pads underneath the Circle Pad joystick.

Use a spudger or screwdriver to lift the pads up and remove them from the device.



Step 10 SD Board

Remove the two 4.5 mm Phillips screws securing the SD board to the motherboard.



Step 11

Use the flat end of a spudger to pry the SD board ribbon cable connector off its socket on the motherboard.



Step 12



Insert the flat end of a spudger between the SD board and the motherboard.

Run the spudger along the sides of the SD board to free it from the adhesive pad holding it in place.

Once completely freed, lift the SD board straight off the motherboard.



Step 13 Wi-Fi Board



Slide the flat end of a spudger under the corner of the Wi-Fi board, and lift it away from the motherboard.

The Wi-Fi antenna cable is still connected to the Wi-Fi board, so you cannot completely remove the Wi-Fi board yet.



Step 14



Lift the Wi-Fi board off the motherboard and rotate it so that the bottom side is facing up.

Use the flat end of a spudger to pry the Wi-Fi antenna cable connector off its socket on the Wi-Fi board.

Remove the Wi-Fi board from the device.



Step 15 Motherboard Assembly



Grasp the microphone ribbon cable near the microphone with a pair of tweezers.

Pull the microphone straight up out of the upper case.



Step 16



Use the flat end of a spudger or your fingernail to flip up the retaining flap on the speaker assembly ribbon cable ZIF socket.

Be sure you are prying up on the hinged retaining flap, NOT the socket itself. Damaging the socket or cable will result in a 3DS that will blink its power LED when you press the power button - and do nothing else.

Disconnect the speaker assembly ribbon cable with a pair of tweezers.



Step 17



Use the flat end of a spudger or your fingernail to flip up the retaining flap on the camera ribbon cable ZIF socket.

Be sure you are prying up on the hinged retaining flap, not the socket itself.

When reassembling, note that the gold contacts face toward the motherboard (as opposed to the camera cable's gold contacts facing away).



Step 18



Remove seven Phillips screws securing the motherboard to the upper case:

Four 2.5 mm gold screws

Two 3.5 mm black screws

One 2.5 mm silver screw

Lift the side of the motherboard that sits along the bottom edge of the 3DS.



Step 19



Continue lifting the motherboard assembly and rotate it until it is resting next to the rest of the device.

Use the flat end of a spudger or your fingernail to flip up the retaining flap on the LCD ribbon cable ZIF socket.

Be sure you are prying up on the hinged retaining flap, not the socket itself.



Step 20



Remove the motherboard assembly from the rest of the device.



Step 21 ABXY Buttons



Peel the grey silicone cover off the back of the ABXY buttons.



Step 22



Open the 3DS and orient it so that the back sides of the buttons are facing up.

Use your finger to push each button up and lift it out of the upper case.

Repeat this procedure for all four ABXY buttons.

Each button can only go into one slot in one orientation. Be sure that you are putting each button in the correct slot when reassembling your device.



Step 23



If it is difficult to pry the front panel off, reheat the area you are working on with the heat gun, and then return to prying. Applying excessive force could crack the front panel.

Heat the edges of the upper display front panel with a hair dryer or heat gun to soften the adhesive holding it to the display bezel.

Begin prying the edges of the front panel off with a plastic opening tool.

If it is difficult to pry the front panel off, reheat the area you are working on with the heat gun, and then return to prying. Applying excessive force could crack the front panel.


Step 24



Too little heat will result in excessive bending/breaking of the front panel, and too much will melt and destroy the LCD underneath. Take your time.

Continue prying the remaining sides of the front panel by sliding the plastic opening tool down each edge.

Too little heat will result in excessive bending/breaking of the front panel, and too much will melt and destroy the LCD underneath. Take your time.



Step 25




With all of the sides free, lift the upper display front panel off the display bezel.



Step 26 Rear Display Bezel

Remove the six 3.6 mm Phillips screws securing the rear display bezel to the front display bezel.



Step 27



Lift the edge of the rear display bezel closest to you and rotate it towards the hinge.

Flip the device over so that the rear display bezel is on top and the hinge is on the side opposite from you.

Lift the edge of the rear display bezel closest to you and rotate it towards the hinge.

Continue to lift the rear display bezel off the rest of the device until it is free.

There are clips toward the bottom of the rear display bezel holding it in place. Use enough force to disengage the clips, but be careful not to break them.



Step 28 Upper Display Assembly



This step is not necessary for disassembly, but the switch is likely to fall out on its own. By removing it yourself, you reduce the chance of losing it.

Remove the 3D adjustment switch from the front display bezel.

This step is not necessary for disassembly, but the switch is likely to fall out on its own. By removing it yourself, you reduce the chance of losing it.


Step 29



Push the hinge towards the center of the upper case. This will require a fair amount of force.

Insert a metal probe into the space above the ABXY buttons with the point touching the metal hinge.

Push the hinge towards the center of the upper case. This will require a fair amount of force.

Before and after images of the hinge location when looking at the back of the upper display are shown.



Step 30



Slowly pull the upper display assembly away from the upper case.

Before proceeding, note how the 3 ribbon cables are oriented (what direction the gold contacts face) and layered together (which cable is on top of which). The cables are too short to reach if they are threaded through in any other orientation.

Slowly pull the upper display assembly away from the upper case.

Make sure that the various ribbon cables are being fed through the slit in the upper case.

Separate the upper display assembly from the upper case.



Step 31 Speaker Assembly



You must gently coil the ribbon cables (similar to an ice-cream cone) to allow them to fit - the cables are wider than the hole.

Carefully feed the speaker assembly ribbon cable through the hole in the upper display bezel.

You must gently coil the ribbon cables (similar to an ice-cream cone) to allow them to fit - the cables are wider than the hole.



Step 32

Remove the 2.5 mm Phillips screw securing the right speaker board to the upper display bezel.



Step 33



Be sure you are prying up on the hinged retaining flap, '''not''' the socket itself.

Use the flat end of a spudger or your fingernail to flip up the retaining flaps on the parallax barrier ribbon cable ZIF sockets.

Be sure you are prying up on the hinged retaining flap, not the socket itself.

Use a pair of metal tweezers to disconnect the two ribbon cables.



Step 34



Pry the camera status LED out of the upper display bezel with the tip of a spudger.

Use the flat end of a spudger to pry the left and right speakers out of their places in the upper display bezel.

Pry the camera status LED out of the upper display bezel with the tip of a spudger.



Step 35

Remove the speaker assembly from the rest of the display assembly.



Step 36 Cameras




Gently roll the upper LCD ribbon cable and camera ribbon cable together and insert them into the hinge opening.



Step 37



Carefully pull the camera and upper LCD ribbon cables through their hole in the upper display bezel.

Use a pair of metal tweezers to remove the black metal hinge ring from the upper display bezel.

Carefully pull the camera and upper LCD ribbon cables through their hole in the upper display bezel.



Step 38



The ribbon cable is held to the back of the LCD housing by an adhesive, so pull on it gently to avoid tearing the ribbon cable.

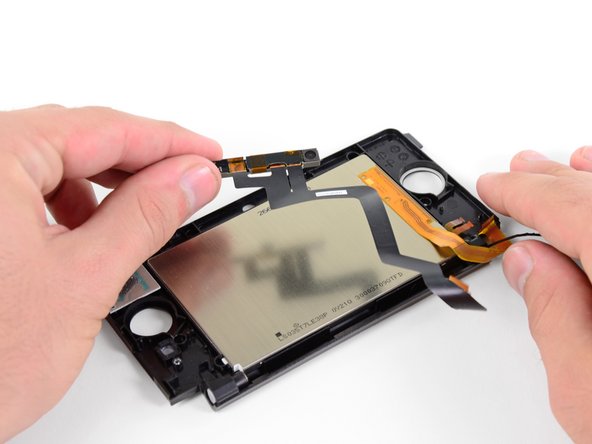

Peel the camera ribbon cable off the back of the upper LCD.

The ribbon cable is held to the back of the LCD housing by an adhesive, so pull on it gently to avoid tearing the ribbon cable.

Remove the camera ribbon cable assembly.
