Game Boy Pocket Power Button Replacement



Step 1 Remove the external screws
Use a Y1 tri-wing screwdriver and turn counterclockwise to remove the four external screws.



Place the Game Boy Pocket face-down on a clean, flat surface.
Use a Y1 tri-wing screwdriver and turn counterclockwise to remove the four external screws.
Use a Y1 tri-wing screwdriver and turn counterclockwise to remove the two screws inside the battery compartment.

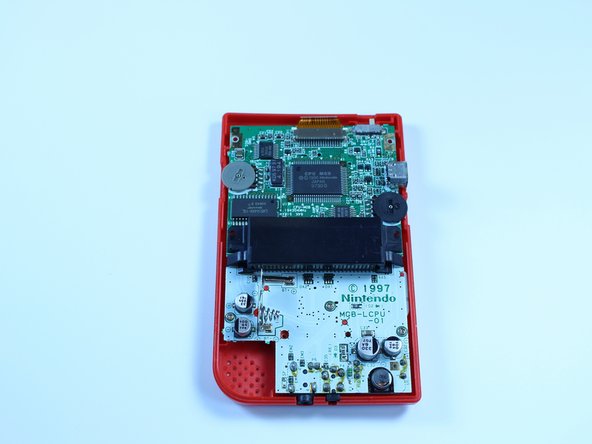

Step 2 Open the device
Set the back cover aside. You will need it to reassemble the device.



Place your hands on the front and back covers of the Game Boy Pocket, and carefully separate the device.
Set the back cover aside. You will need it to reassemble the device.


Step 3 Remove the power button




Use your fingers to remove the grey power button to the right of the ribbon cable.
