Game Boy Fixing Lines/Bars



Introduction



Fixing the common problem of lines/bars on the original Nintendo GameBoy



Step 1 Lines/Bars

Note: The last 2 screws are in the battery compartment.







Remove the back housing by removing the 6 Tri-Point or Philip screws.

Note: The last 2 screws are in the battery compartment.





Step 2

Remove the ribbon cable for the next step.

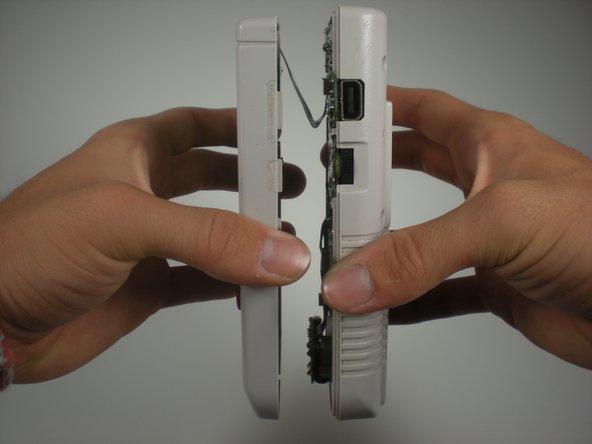

Carefully lift up the top half of the system. Be careful, there's a ribbon cable that connects the top and bottom half of the system.

Remove the ribbon cable for the next step.





Step 3

Now put the batteries back into the compartment, so you can test the screen while you fix it.







Now there will be screws that mount the board to the front, carefully unscrew these.

Now remove the board from the housing.

Now put the batteries back into the compartment, so you can test the screen while you fix it.

Reconnect the the board to back housing.





Step 4

'''Make sure not to touch the screen itself.'''

You're now going to turn the contrast ( the slider on the left) all the way up, and take your soldering iron and gently move it back and forth on the ribbon cable below the screen.

Make sure not to touch the screen itself.

Note: There may be a rubber strip covering the ribbon.





Step 5

You will start to see the lines of pixels fade in and out, keep moving your iron back and forth until screen is completely black.
